SUR-RON - Electric Bike | LB Dual Sport Road Legal - 2021
![Pin It](http://pinterest.com/pin/create/button/?url=https://www.juddracing.com/products/sur-ron-electric-bike-lb-dual-sport-road-legal-2021.html&media=https://cdn10.bigcommerce.com/s-cmf23c/products/16087/images/20684/Surron_l1e_road_legal_grey_1296x_6034b4c9-3ade-43fb-ae9e-c6750eeb8670_900x__98223.1618327314.1280.1280.jpg?c=2&description=Judd Racing - SUR-RON - Electric Bike | LB Dual Sport Road Legal - 2021, <span class="ProductDetailsPriceIncTax">£4,795.00 (inc VAT)</span> <span class="ProductDetailsPriceExTax">£3,995.83 (exc VAT)</span> (https://www.juddracing.com/products/sur-ron-electric-bike-lb-dual-sport-road-legal-2021.html))
Recommended Accessories
Product Description

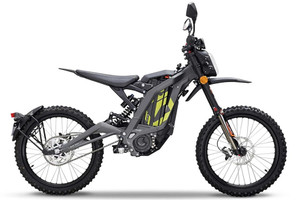

Sur-Ron 2021 LB Road Legal Dual Sport Electric Motorcycle Moped
The SUR-RON LB Road Legal Electric Dirt Bike promises advanced fun on all terrain. 60V and more than 6kW of peak power from a removal Panasonic Lithium ion battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 51kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point.
Aimed at the adult rider with a Moped licence show wants to use the bike on road to get to where you want to play off road, with a climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode.
Top speed 30MPH (easy full speed modification for off road use), Fast Re Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.
Tested and certified protection against dirt, dust and wet weather use under normal riding conditions
Specifications
| Motor | |
| Motor Type: | PMSM |
| Mounting Position: | Mid / Motor External |
| Weight / Motor External Diameter: | 7.0kg / 180mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 95.60% |
| Cooling Method: | Air-Cooled |
| Controller | |
| Controller Type: | X Version Sine Wave |
| Dimensions: | 240mm x 110mm x 50mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco and Sport |
| Motor Power System | |
| Rated Voltage: | 60V (DC) |
| Rated Power / Peak Power: | 3000W / 6000W |
| Rated Torque / Peak Torque: | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM: | 35.40Nm |
| Rated Rotation Speed: | 4300rpm |
| Peak Efficiency: | 97.8% |
| Range of Efficiency (≥80): | 1.4Nm - 21.5Nm |
| Certificates | |
| Road Legal: | YES |
| Transmission | |
| Gear Ratio: | 1:7.6 |
| Transmission: | Primary Belt & 420 Drive Chain |
| Belt Brand & Model: | German Continental Brand, 8M CXA |
| Electrical Components | |
| Horn: | European Standard Horn |
| Battery: | 60V 32A Lithium Battery with 176 Panasonic Cells |
| Battery Life Time: | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 10A |
| Charging Time: | 2.5-3.5 Hours |
| USB Connection: | USB-2.1 A Single Socket |
| Speedometer: | LCD Digital Speedometer |
| LED Headlight & Rear Light: | Yes |
| Crate Data | |
| Crate Dimension: | 1650mm x 850mm x 310mm |
| Gross Weight: | 70kg |
| To Assemble from Crate: | Handlebars, foot rests & insert front wheel |
| Vehicle | |
| Chassis - Swing Arm Material: | No. 6061 T4 & T6 Aluminium Alloy |
| Chassis Construction Method: | Forged by 6000 Tons of Pressure |
| Chassis Surface & Colour Processing: | Anodic Oxidation |
| Front Suspension: | DNM, RST or Fastace |
| Rear Shock Absorber: | Adj DNM, RST or Fastace Shock with TR Suspension Link System |
| Wheel Type & Size: | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs |
| Tyre Size: | Front/Rear 70/100-19 CST |
| Top Speed: | 47 MPH 73KMH Varies depending upon load and gearing |
| Max Range: | 60 Miles @ 20 MPH average speed depending upon terrain |
| Net Weight: | 47kg plus battery |
| Max Load: | 100kg (15.75 Stone) |
| Max Climb: | 45° |
| Rear Sprocket: | 48T |
| Side Stand: | Yes with kill switch |
| Vehicle Dimensions: | 1870mm x 780mm x 1040mm |
| Min. Ground Clearance: | 270mm |
| Wheelbase: | 1260mm |
| Seat Height: | 84 to 88cm |
