Nihilo Concepts Multi Tool KTM 50 65 2009>

If you have a KTM 50 or KTM 65 you know how hard it can be to access the spark plug.

The space is tight and it requires a special tool to do it right.

Nihilo Concepts has developed a must have tool that will not only help you to change the spark plug but also includes some additional features that will come in handy when setting up your bike.

Spark Plug Wrench- The 6061 aluminium wrench was designed with a 12 point socket system to fit the 16mm spark plug.

The sides are small enough to fit between the 65’s power valve and spark plug for easy installation and removal.

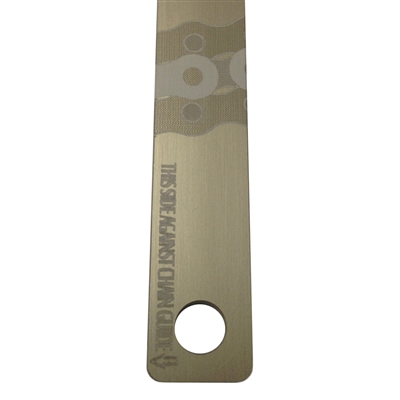

Chain Adjuster Markings- The handle of the tool has been laser engraved with a Chain Adjustment system that allows the mechanic to quickly determine the proper chain adjustment.

A darkened picture of the chain is engraved with a lighter picture of the chain above and below to show the allowable tolerance.

You simply slide the tool up against the chain slider and pull the chain up to see how it lines up with the picture on the tool then quick adjustments can be made until the chain lines up perfectly with the image engraved on the tool.

Torque Specs- Using a torque wrench and knowing the proper torque specifications for your motorcycle is the best way to avoid over tightening and the possibility of breaking off a bolt.

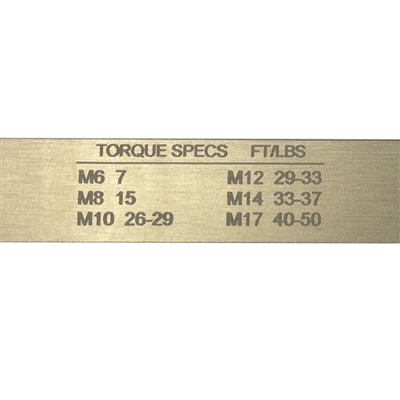

Nihilo has Laser Engraved torque specs for 6 of the most common sizes found on your bike.

Next time a friend asks for a torque spec just refer to your Nihilo Multi Tool.

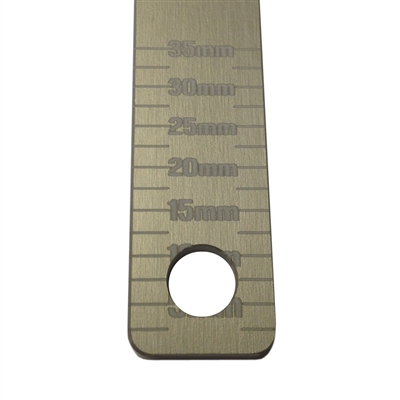

Adjustment Markings- The Multi Tool also includes easy to read laser engraved lines spaced at 2.5mm increments starting at the bottom of the tool and going from 0 to 35mm.

These markings can be used to adjust and keep track of your fork height, chain adjustment, brake and shift lever adjustment, or simply provide you with an accurate way to measure a countless number of things when working on your bike.

Hole in handle- You guessed it there is a 7mm hole in the end of the handle that can be used to hang the Multi Tool above your work bench.

You can even stick the handle between the brake pads when the wheel is removed to keep the pads separated making assembly easy.

We are sure you will find even more ways to use the Multi Tool.

The Nihilo Concepts Multi Tool is a must have item for any serious Youth MX Dad that wants to make fast and easy adjustments in the shop or at the track.

Features:

Easy Reach Spark Plug wrench

Chain adjustment markings

Torque Specs

Adjustment markings at 2.5mm apart

Hole in Handle for easy hanging
